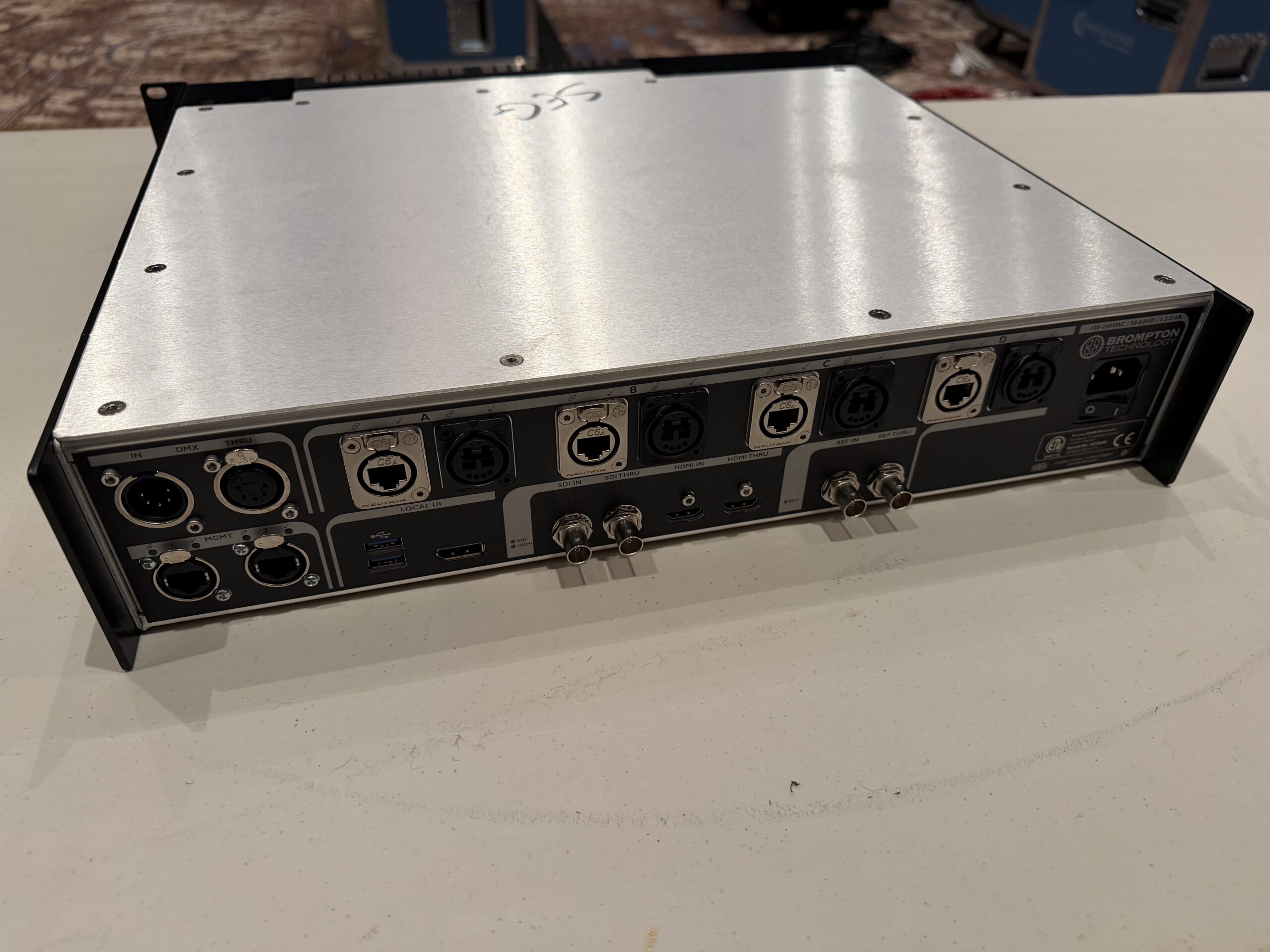

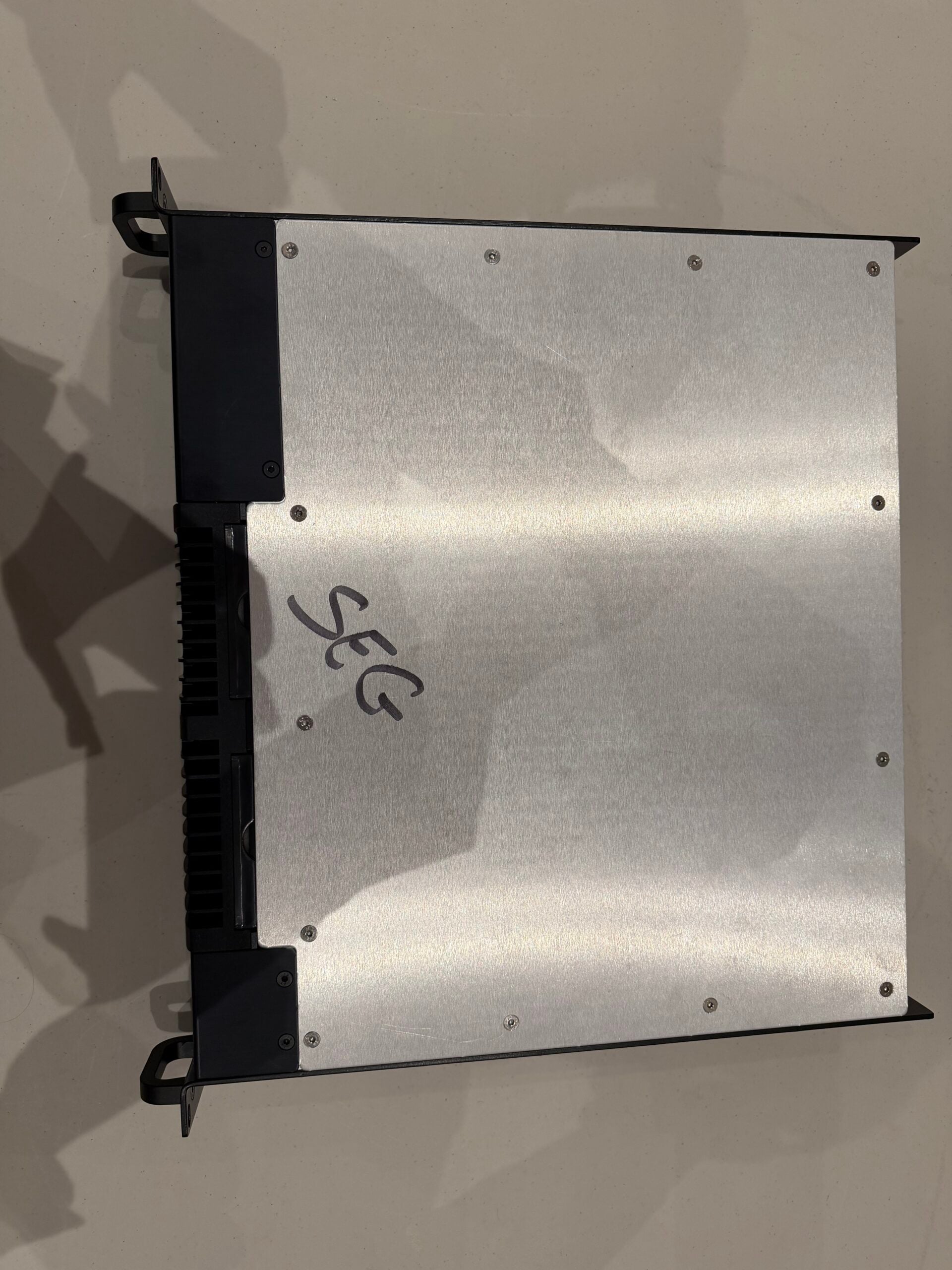

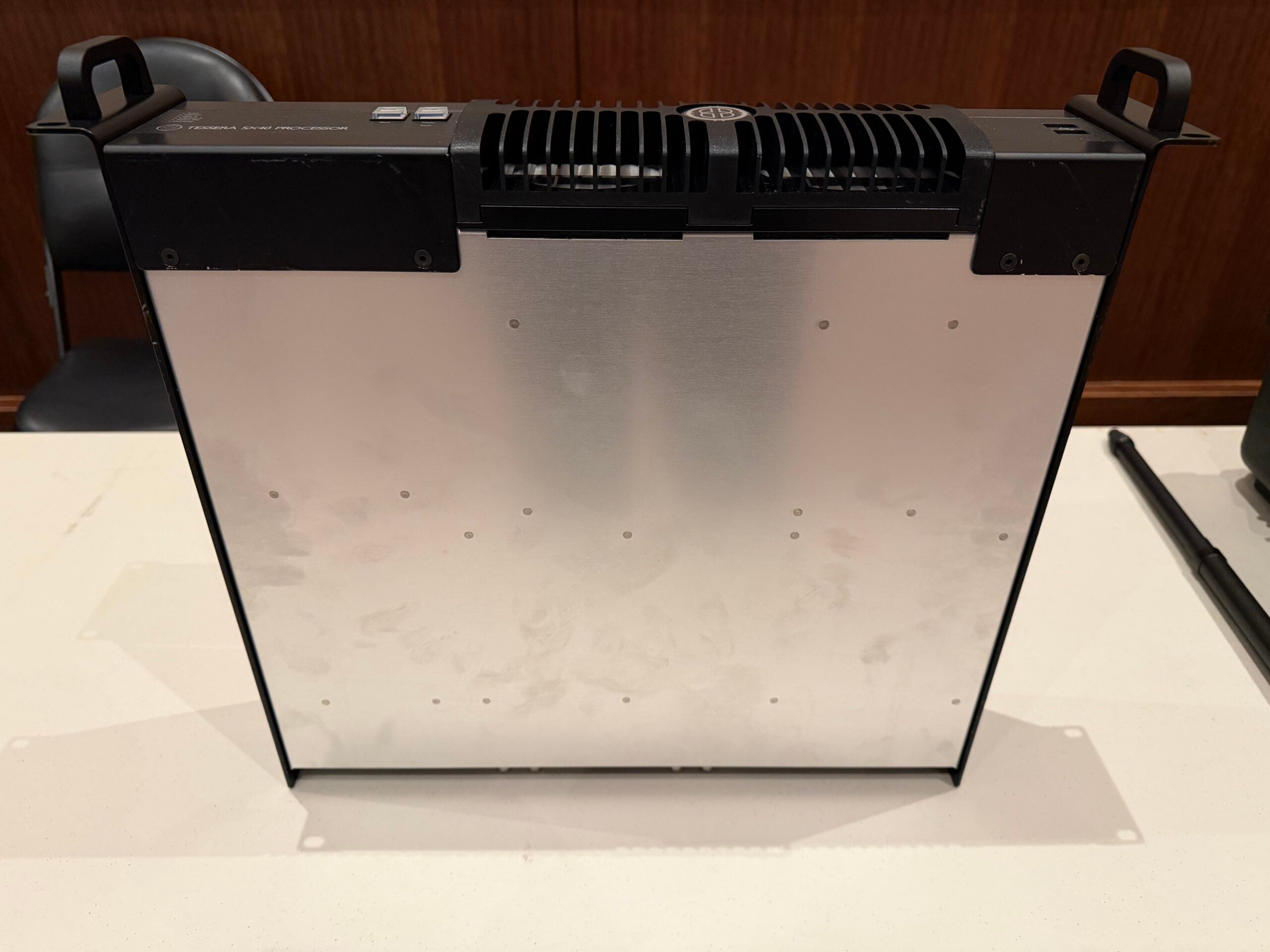

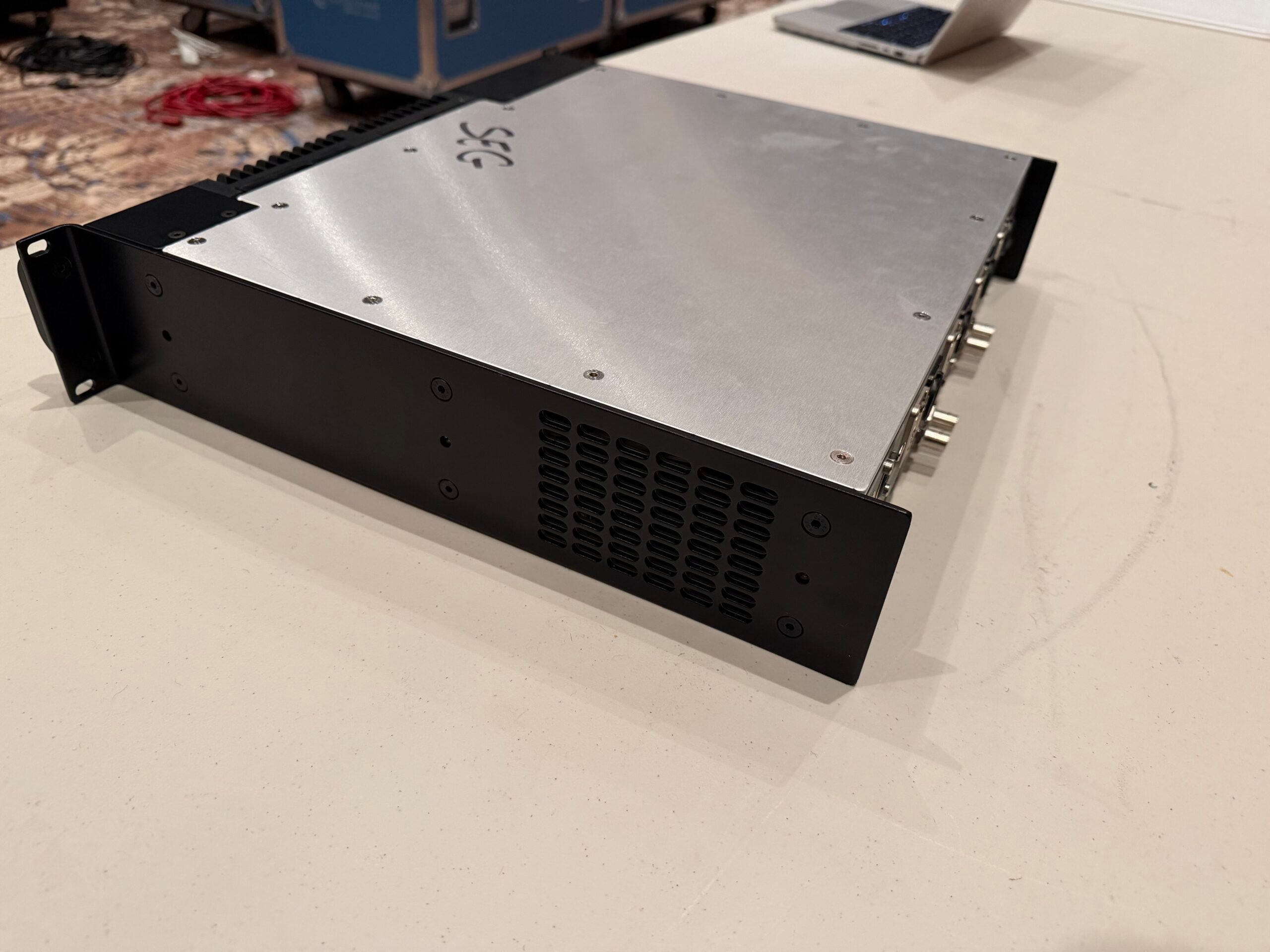

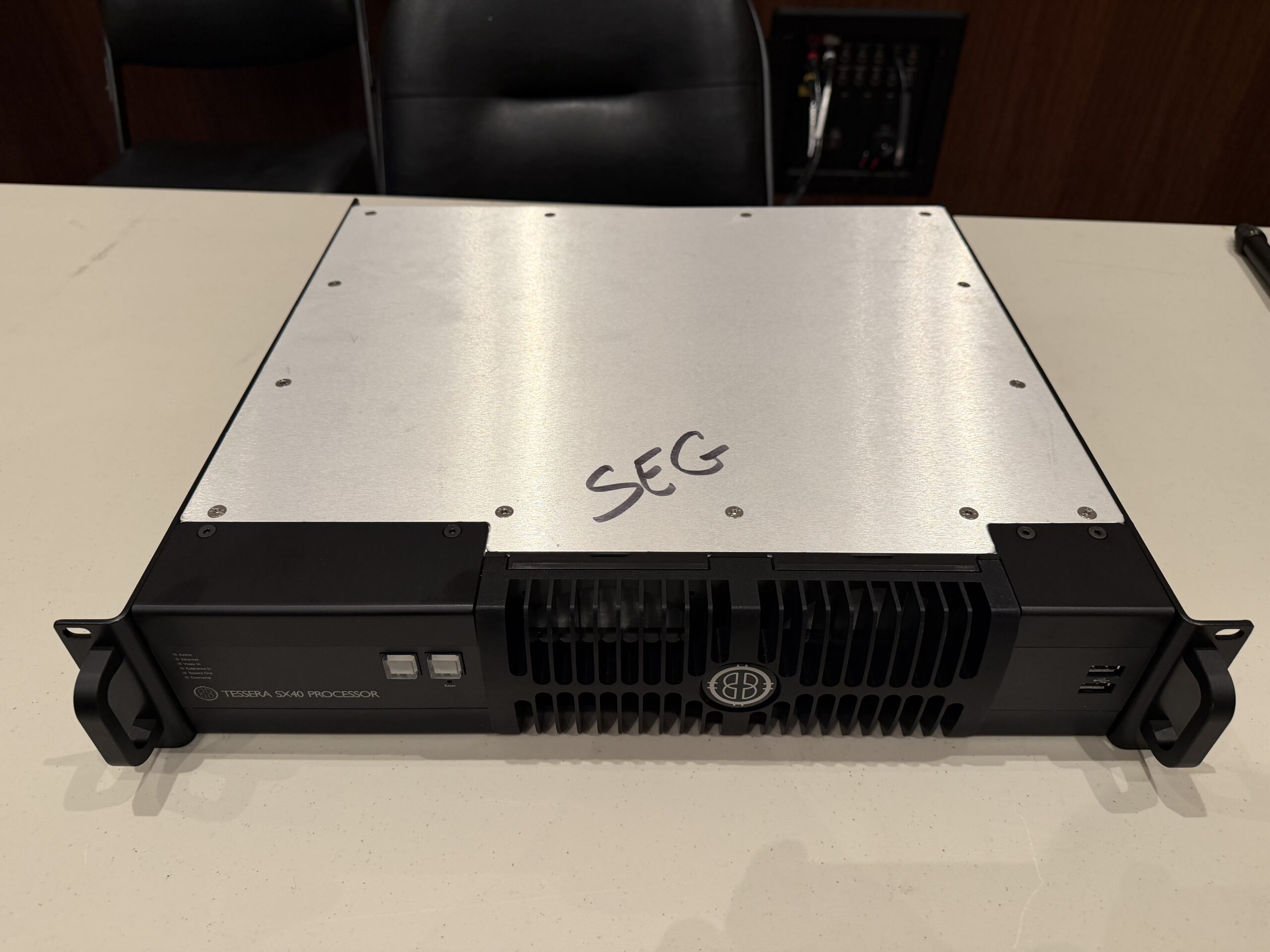

Brompton Tessera SX40 LED Processor
The Brompton Tessera SX40 is a professional-grade 4K LED video processor designed for live events, touring productions, broadcast, corporate presentations, and permanent LED installations. Built around Brompton’s industry-leading Tessera platform, the SX40 delivers exceptional image quality, low-latency processing, advanced color management, and reliable performance for demanding LED applications.
Key Features
• Supports up to 9 million pixels of LED processing capacity
• Full 4K workflow with HDMI 2.0 and 12G-SDI inputs
• Zero-latency scaling and image processing
• Advanced HDR and dynamic calibration capabilities
• Precise pixel mapping and canvas management
• Genlock support for synchronized multi-system deployments
• Compatible with Brompton Tessera XD distribution units
• Industry-standard processor for touring, festivals, broadcast, and corporate productions
Applications
• Concerts and touring productions
• Corporate meetings and keynote presentations
• Broadcast and live streaming environments
• Trade shows and experiential activations
• Large-format indoor and outdoor LED video walls
Specifications
Inputs:
• HDMI 2.0
• 12G-SDI
• Genlock Reference Input
Maximum Processing Capacity:
• Up to 9 million pixels
Maximum Input Resolution:
• 4096 x 2160 (4K)
Dimensions:
• 19″ W x 3.5″ H x 16″ D
• 2RU Rack Mount
Power Requirements:
• 100–240V AC
• 50/60 Hz
Included With Rental
• Brompton Tessera SX40 Processor
• Power Cable
• Configuration Support
• Basic Setup Assistance (upon request)
Optional Accessories
• Tessera XD Distribution Units
• Fiber Distribution Systems
• OpticalCON Cabling
• LED Wall Processing Packages
• Video Switching and Playback Systems
• On-Site Video Engineers
